Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Be careful not to scratch the door trim and other parts.

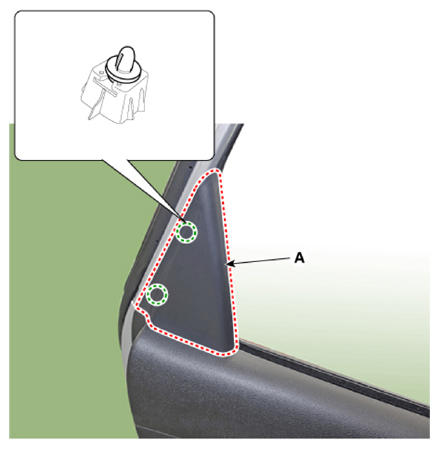

Using a screwdriver or remover, remove the rear door delta inner cover (A).

Courtesy of KIA MOTORS AMERICA, INC.
Using a flat-tip or remover, remove the rear door pull handle mounting cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

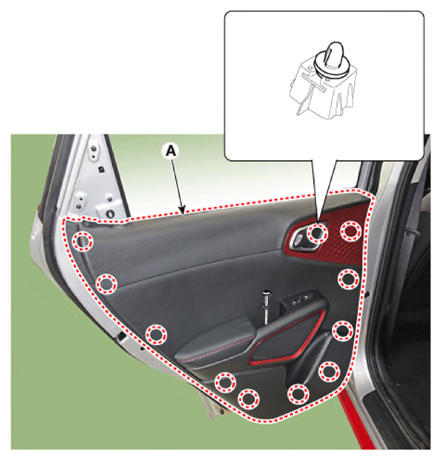

Loosen the mounting screw and remove the rear door trim (A).

Courtesy of KIA MOTORS AMERICA, INC.

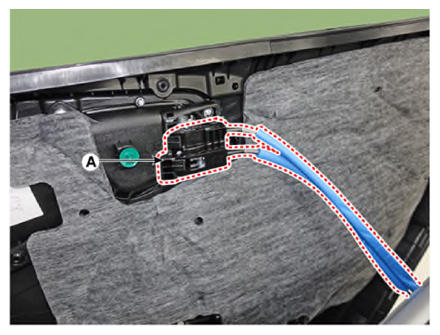

Remove the rear door inside handle cage (A).

Courtesy of KIA MOTORS AMERICA, INC.

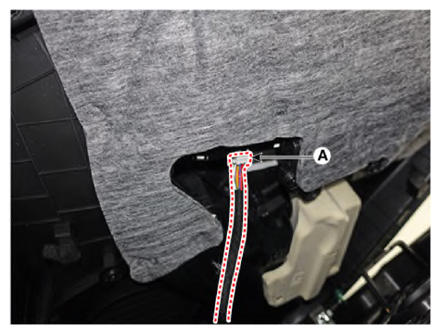

Disconnect the power window switch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
- Make sure the glass moves properly.
