Repair Procedures: Replacement

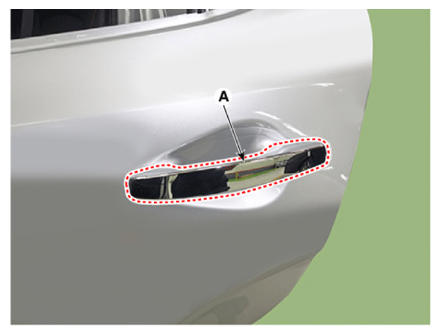

  1. Remove the plug hole and loosen the mounting bolt, remove the rear door outside handle (A).

    Tightening torque

    3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

    G13281954Courtesy of KIA MOTORS AMERICA, INC.
  2. To install, reverse removal procedure.

    Information

    • Make sure the door locks/unlocks and opens/closes properly.

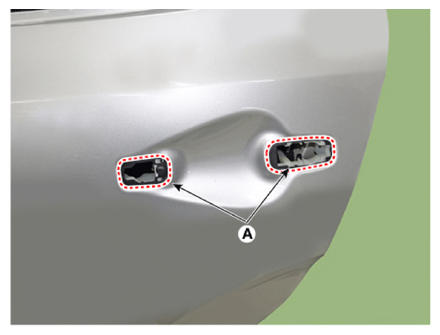

    • Be sure to install the outside handle pad (A) between the outside handle and the door panel.
G13281955Courtesy of KIA MOTORS AMERICA, INC.
