Repair Procedures: Replacement

Remove the rear door window glass.
(Refer to Rear Door - "REAR DOOR WINDOW GLASS ")
Remove the rear door outside handle.
(Refer to Rear Door - "REAR DOOR OUTSIDE HANDLE ")

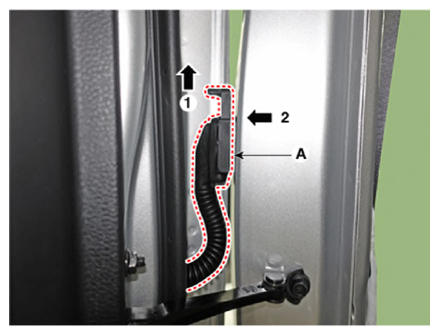

Disconnect the rear door main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

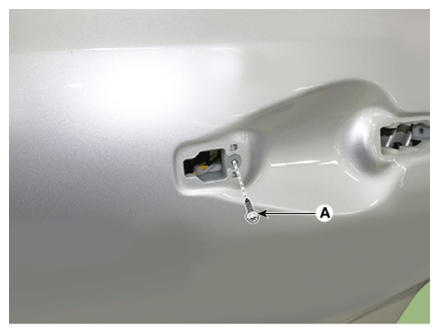

Loosen the rear outside handle base mounting bolt (A).

Courtesy of KIA MOTORS AMERICA, INC.

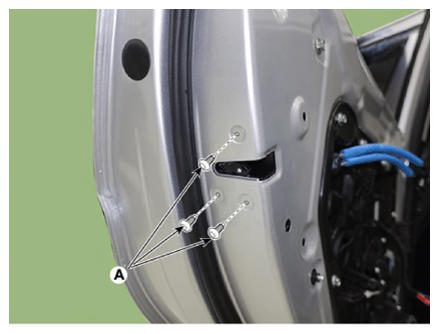

Loosen the rear door latch mounting screws (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.0 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

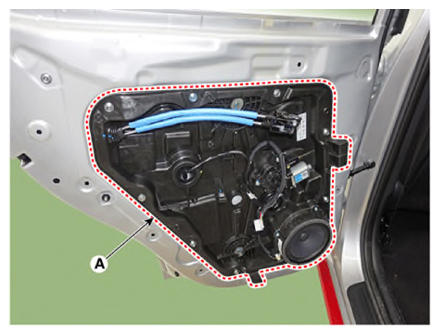

Loosen the mounting bolts and remove the rear door module (A).
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

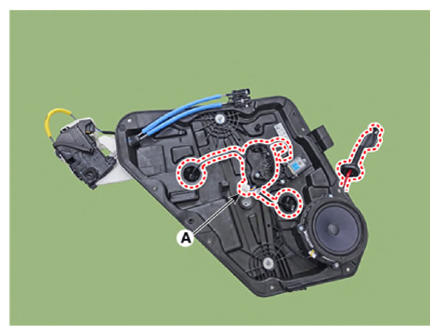

Disconnect the connectors and rear door module wiring harness (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear door latch assembly.
(Refer to Rear Door - "REAR DOOR LATCH ")
Remove the rear door speaker
(Refer to Body Electrical System - "SPEAKER ")
Remove the rear power window motor.
(Refer to Body Electrical System - "POWER WINDOW ")
To install, reverse removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
