Repair Procedures: Replacement

Remove the rear door module.
(Refer to Rear Door - "REAR DOOR MODULE ")

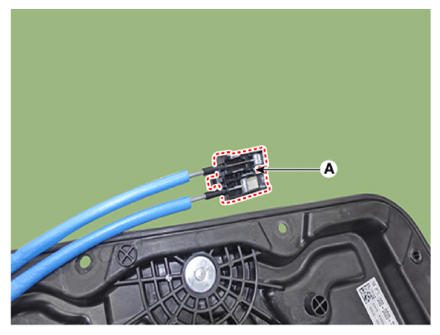

Remove the rear door inside handle cage (A)

Courtesy of KIA MOTORS AMERICA, INC.

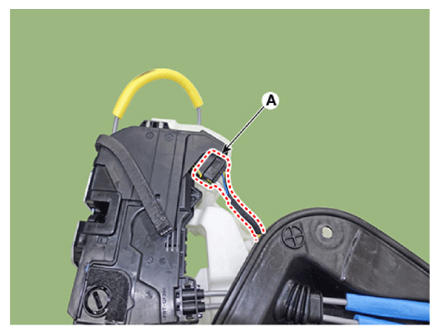

Disconnect the rear door latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

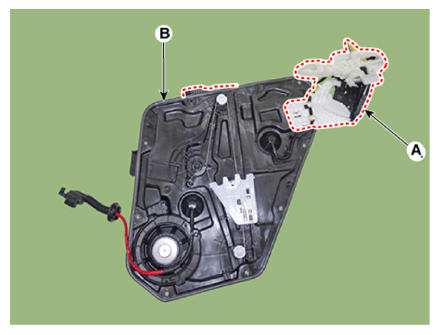

Remove the rear door latch (A) from the module (B) by pushing it in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.

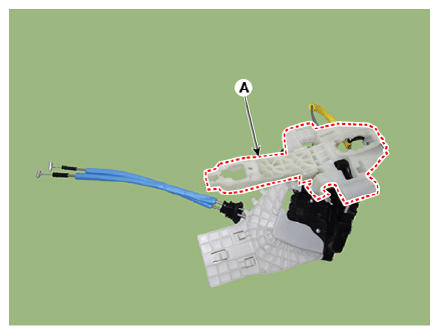

Remove the rear door outside handle base bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

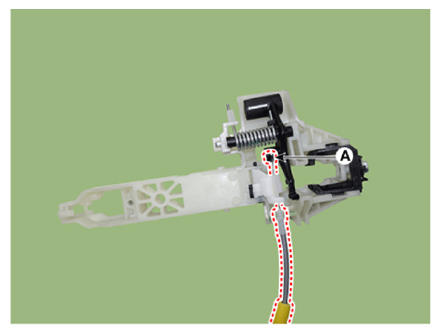

Loosen the rear door outside handle cable (A) and remove the rear door outside handle base.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
