Repair Procedures: Replacement

  1. Remove the rear door trim.

    (Refer to Rear Door - "REAR DOOR TRIM ")

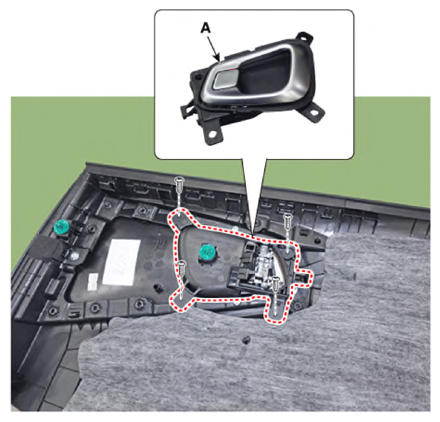

  2. After loosening the mounting screws, remove the rear door inside handle (A).
    G13281939Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reverse removal procedure.
    NOTE:
    • Make sure the door locks/unlocks and opens/closes properly.
    • Replace any damaged clips (or pin-type retainers).
