Repair Procedures: Replacement

  1. Pull down the rear door window glass to the lowest level by pressing the power window glass switch.

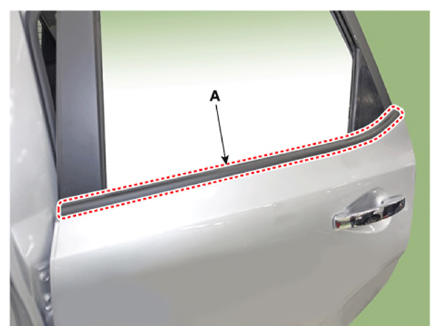

  2. After loosening the mounting screws, remove the rear door belt outside weatherstrip (A).
    G13281962Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reverse removal procedure.

    Information

    Replace any damaged clips.
