Repair Procedures: Replacement

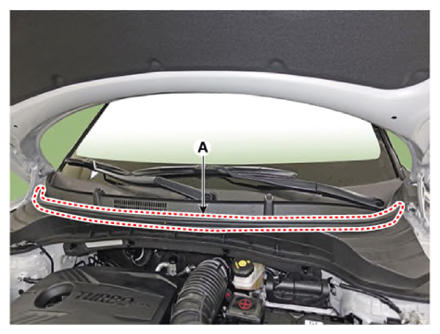

  1. Remove the hood weatherstrip (A).
    NOTE: Be careful not to scratch the hood weatherstrip.
    G13281862Courtesy of KIA MOTORS AMERICA, INC.
  2. To install, reverse removal procedure.
