Repair Procedures: Replacement

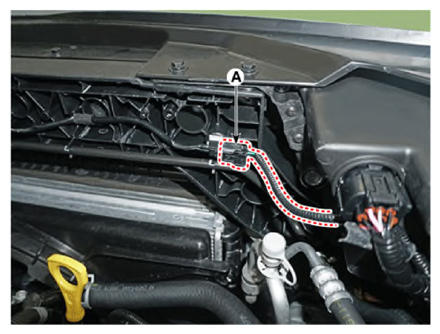

Disconnect the hood latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

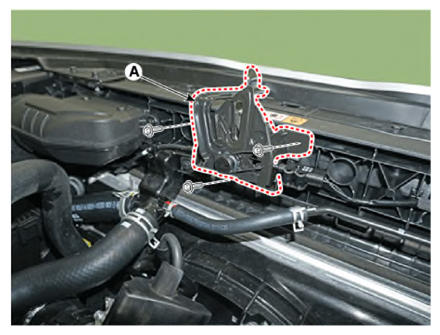

Loosen the mounting bolts and remove the hood latch assembly (A).
Tightening torque:

6.9 - 10.8 N.m (0.7 - 1.1 Kgf.m, 5.1 - 8.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

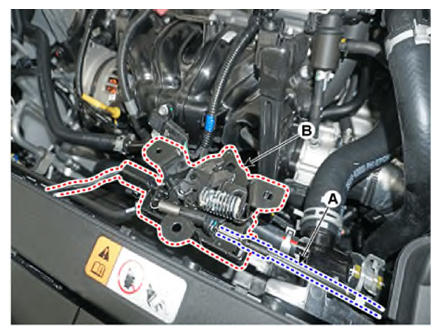

Disconnect the hood latch cable (A) and remove the hood latch (B).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure the hood latch release cable is connected properly.
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the latch alignment.
- Replace any damaged clips (or retainers or fasteners)
