Home >> Kia >> 2020 >> Soul GT Line Turbo >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Hood Assembly >> Hood Latch Release Handle >> Repair Procedures >> Replacement

Repair Procedures: Replacement

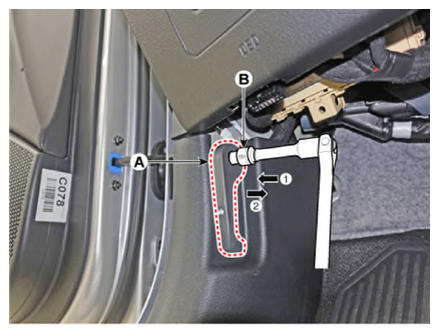

  1. Using a socket (B), remove the hood release handle (A).
    G13281864Courtesy of KIA MOTORS AMERICA, INC.
  2. To install, reverse removal procedure.
    NOTE:
    • Make sure the hood latch cable is connected properly.
    • Make sure the hood locks/unlocks and opens/closes properly.
