Door Position Adjustment

Information

After installing the door, check that the body fits flush with/parallel to all the edges of front door. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.

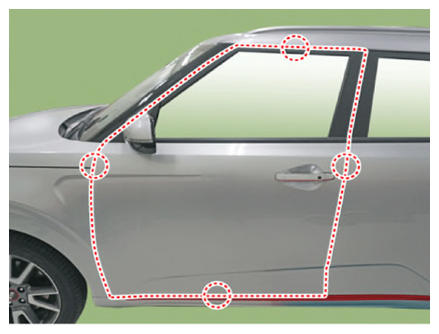

1. Check that the door and body edges are parallel.

   Courtesy of KIA MOTORS AMERICA, INC.

2. Place the vehicle on a level surface before adjusting the doors.

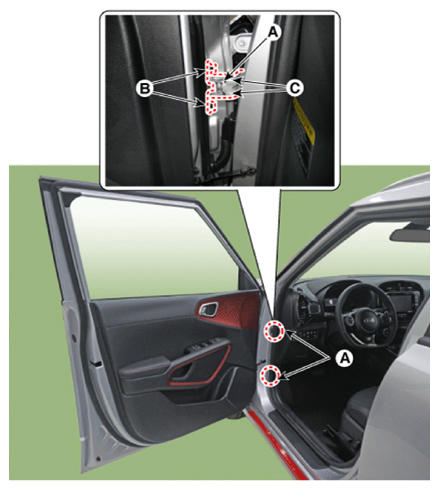

3. Adjust the hinges (A):
   • Loosen the door mounting bolts slightly, and move the door in or out until it flush with the body.
   • Loosen the hinge mounting bolts slightly, and move the door backward or forward, up or down as necessary.
   • Place a shop towel on the jack to prevent damage to the door when adjusting the door.

   Tightening torque

   (B): 21.6 - 26.5 N.m (2.2 - 2.7 Kgf.m, 15.9 - 19.5 lb.ft)

   (C): 23.6 - 31.9 N.m (2.41 - 3.25 Kgf.m, 17.4 - 23.5 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

4. Grease the pivot portions of the hinges indicated.
5. Check for water leaks.
