Repair Procedures: Replacement

  1. Remove the front door trim.

    (Refer to Front Door - "FRONT DOOR TRIM ")

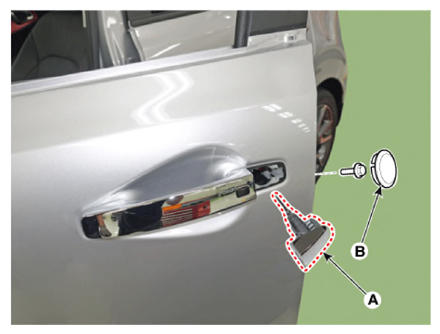

  2. Remove the plug hole (B).
  3. After loosening the mounting bolt, remove the front door outside handle cover (A).

    Tightening torque:

    3.9 - 5.9 N.m (0.4 - 0.6 Kgf.m, 2.9 - 4.3 lb.ft)

    G13281911Courtesy of KIA MOTORS AMERICA, INC.

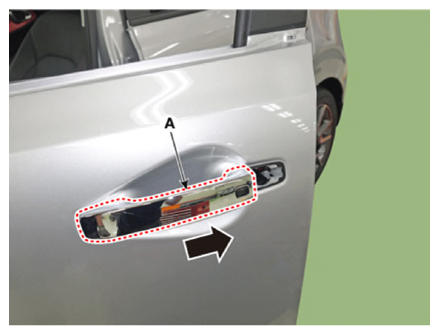

  4. Remove the front door outside handle (A) by sliding it forward.
    G13281912Courtesy of KIA MOTORS AMERICA, INC.

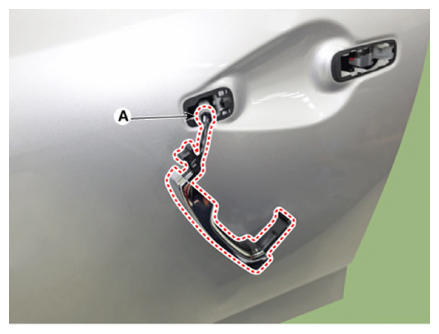

  5. Disconnect the front door outside handle connector (A).
    G13281913Courtesy of KIA MOTORS AMERICA, INC.
  6. To install, reverse removal procedure.

    Information

    • Make sure the connector is connected properly.
    • Make sure the door locks/unlocks and opens/closes properly.

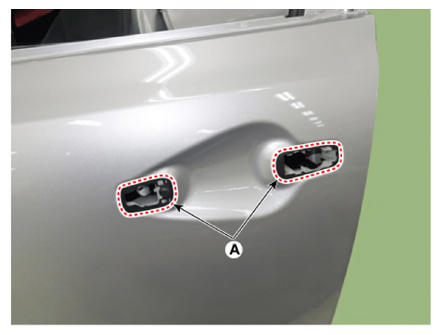

    • Be sure to install the outside handle pad (A) between the outside handle and the door panel.
G13281914Courtesy of KIA MOTORS AMERICA, INC.
