Repair Procedures: Replacement

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")

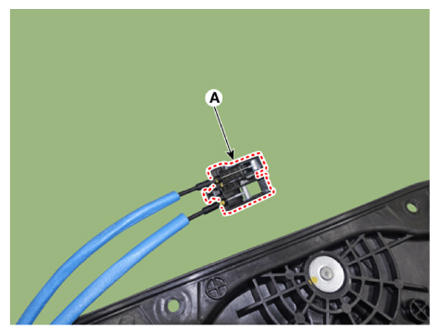

Disconnect the front door latch connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

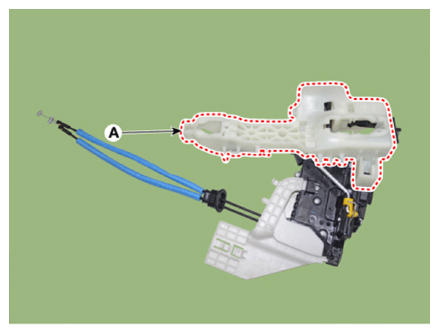

Remove the front door inside handle cage (A)

Courtesy of KIA MOTORS AMERICA, INC.

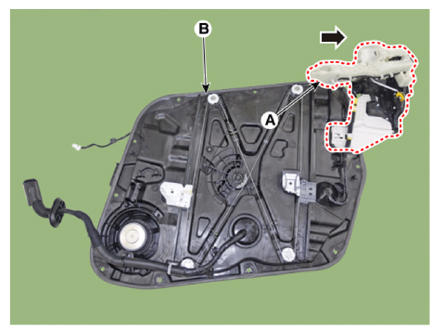

Remove the front door latch (A) from the module (B) by pushing it in the direction of the arrow.

Courtesy of KIA MOTORS AMERICA, INC.
To remove the front door outside handle base connector (A) after turning it counter clockwise.

Courtesy of KIA MOTORS AMERICA, INC.

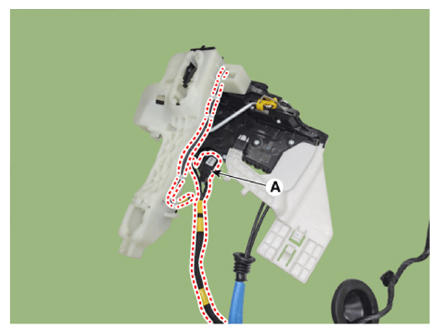

Remove the front door outside handle connector wiring harness (A).

Courtesy of KIA MOTORS AMERICA, INC.

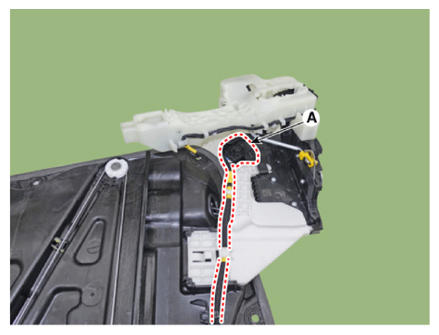

Remove the front door outside handle base bracket (A).

Courtesy of KIA MOTORS AMERICA, INC.

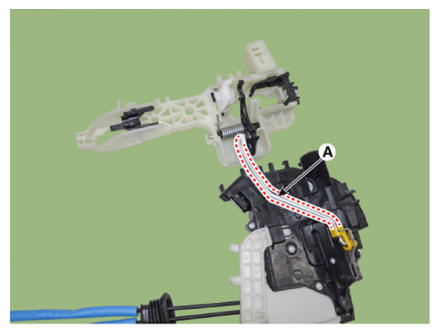

Loosen the front door latch load (A) and remove the front door outside handle base.

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
