Repair Procedures: Replacement

  1. Pull down the front door window glass to the lowest level by pressing the power window glass switch.
  2. Remove the outside rear view mirror.

    (Refer to Mirror - "OUTSIDE REAR VIEW MIRROR ")

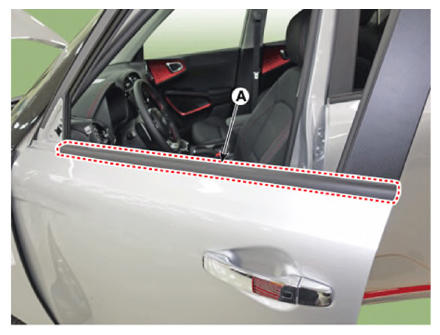

  3. Using a remover or by hand, remove the front door belt outside weatherstrip (A).
    G13281923Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse removal procedure.

    Information

    Replace any damaged clips (or pin-type retainers).
