Repair Procedures: Replacement

  1. Remove the front door trim.

    (Refer to Front Door - "FRONT DOOR TRIM ")

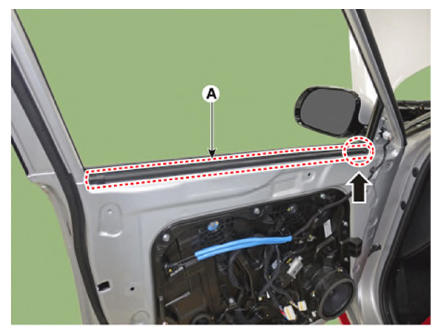

  2. Remove the front door belt inside weatherstrip (A).
    G13281924Courtesy of KIA MOTORS AMERICA, INC.
  3. To install, reverse removal procedure.

    Information

    • When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
    • Replace any damaged parts (including sponge pads).
