Repair Procedures: Replacement

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the front bumper assembly.
(Refer to Front Bumper - "FRONT BUMPER ASSEMBLY ")

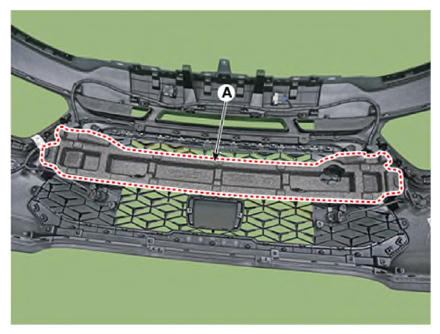

Remove the front bumper energy absorber (A).

Courtesy of KIA MOTORS AMERICA, INC.

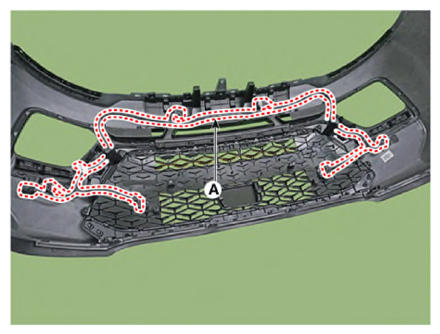

Remove the front bumper wiring (A).

Courtesy of KIA MOTORS AMERICA, INC.

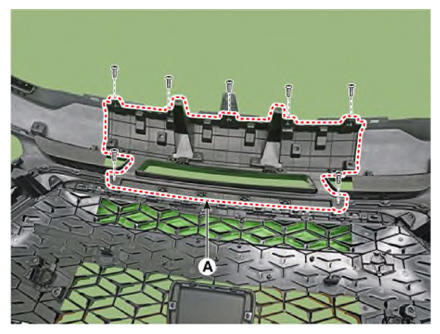

After loosening the mounting screws, remove the radiator grille upper cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

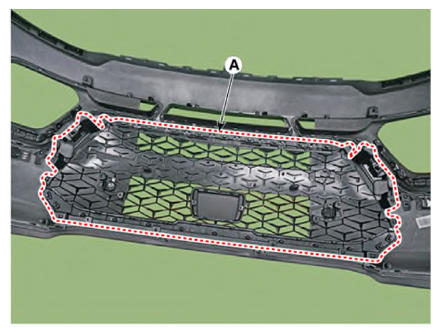

After loosening the mounting screws, remove the radiator grille (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information

Replace any damaged clips (or pin-type retainers).
