Removal And Installation

CAUTION: Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

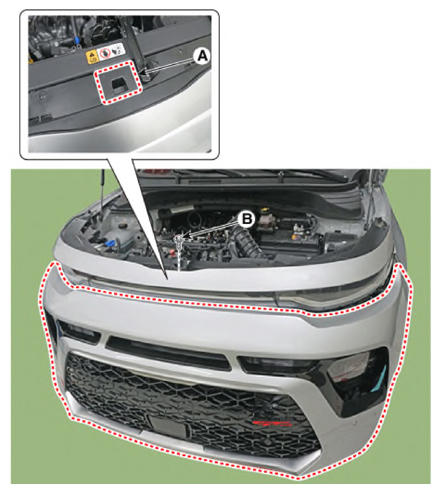

Loosen the bolt (B) after opening the cap (A).
Tightening torque:

19.6 - 29.4 N.m (2.0 - 3.0 Kgf.m, 14.5 - 21.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

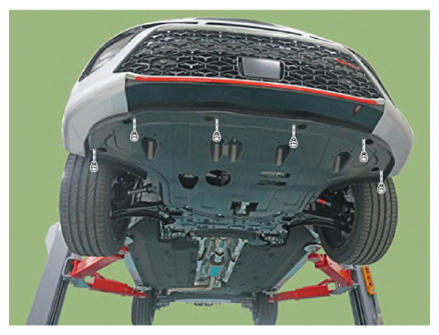

Loosen the front bumper lower mounting clips.

Courtesy of KIA MOTORS AMERICA, INC.

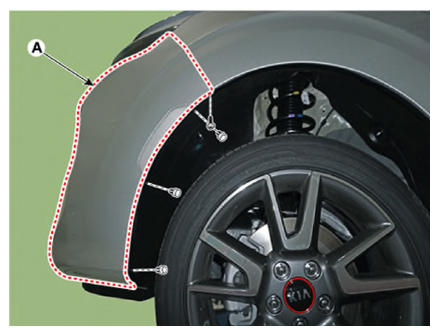

After loosening the screws on the side of front bumper assembly (A), detach the side part of front bumper assembly.
CAUTION: When you pull out the front bumper assembly, the side part of the front bumper assembly could be damaged by the projection.

Courtesy of KIA MOTORS AMERICA, INC.
Press the lock pin and separate the front bumper main connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

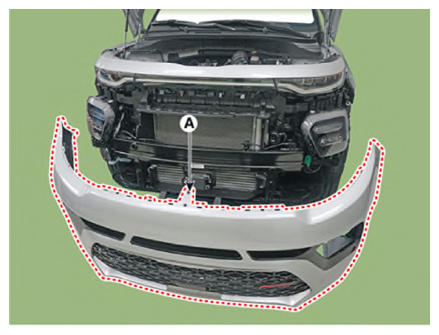

Remove the front bumper assembly (A).

Courtesy of KIA MOTORS AMERICA, INC.
To install, reverse removal procedure.
Information
- Make sure the connector is plugged in properly.
- Replace any damaged clips (or pin-type retainers).
