Monitor KDS Data

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor parameters in "Current Data" with KDS.

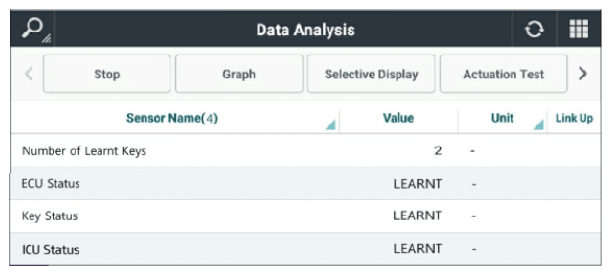

 Fig. 1
G13288478Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  2. Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

  1. Go to "Component Inspection " procedure.
