Component Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "EMS Neutral Mode" in "Vehicle S/W management".

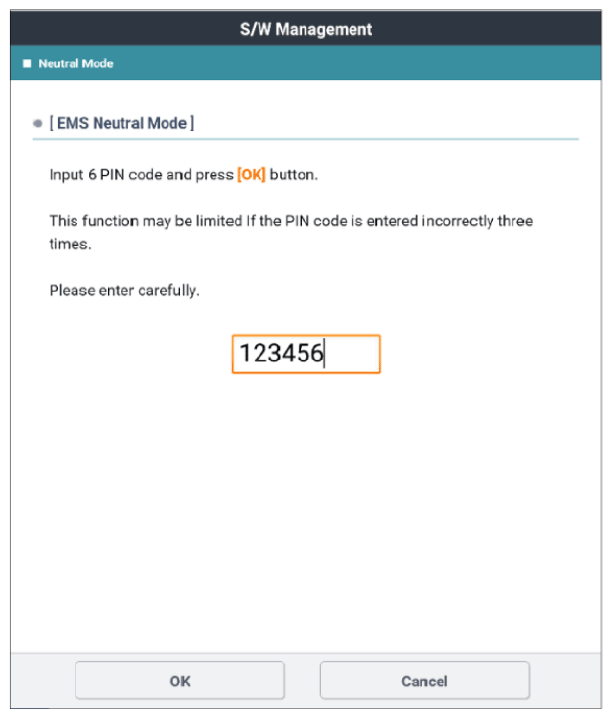

 Fig. 1 to 4
  1. Perform "Teaching" in "Vehicle S/W management".

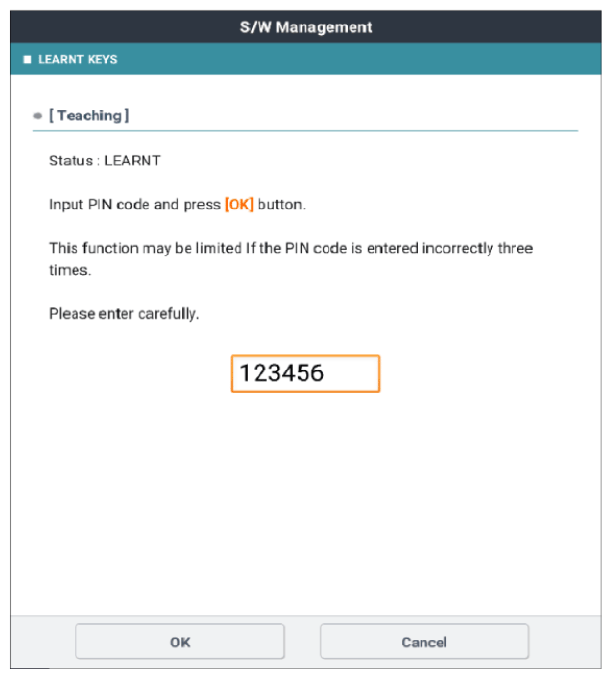

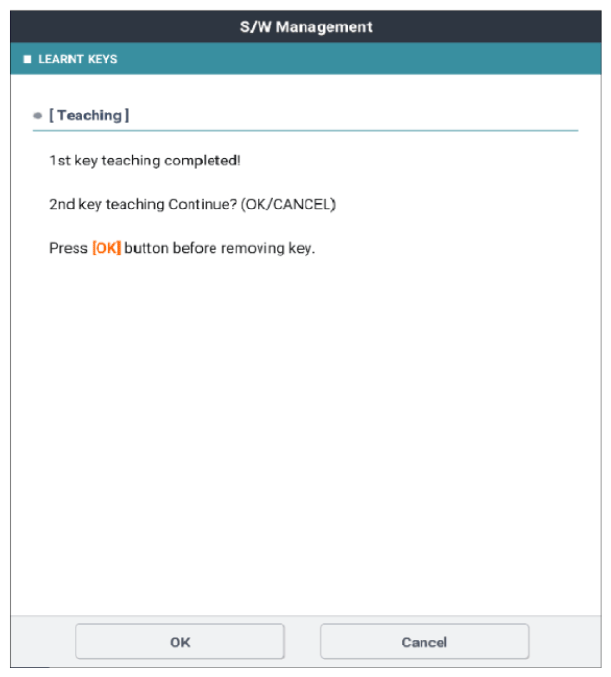

 Fig. 5 to 7
G13288469Courtesy of KIA MOTORS AMERICA, INC.
G13288470Courtesy of KIA MOTORS AMERICA, INC.
G13288471Courtesy of KIA MOTORS AMERICA, INC.
G13288472Courtesy of KIA MOTORS AMERICA, INC.
G13288473Courtesy of KIA MOTORS AMERICA, INC.
G13288474Courtesy of KIA MOTORS AMERICA, INC.
G13288475Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  2. Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

  1. Carefully re-do this troubleshooting guide steps.
  2. If no problems were found with the circuits or connectors, replace the IBU or ECM/PCM and go to "Verification of Repair " procedure.
