Home >> Kia >> 2020 >> Soul GT Line Turbo >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Immobilizer Diagnosis >> DTC P1688: Immobilizer Lock >> Component Inspection

Component Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "EMS Neutral Mode" in "Vehicle S/W management".
 Fig. 1 to 4
  1. Perform "Teaching" in "Vehicle S/W management".
 Fig. 5 to 7

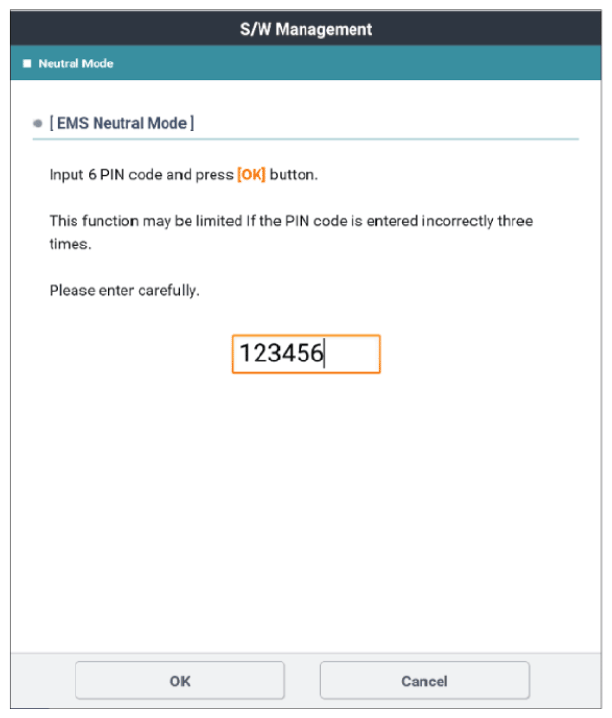

G13288455Courtesy of KIA MOTORS AMERICA, INC.
G13288456Courtesy of KIA MOTORS AMERICA, INC.
G13288457Courtesy of KIA MOTORS AMERICA, INC.
G13288458Courtesy of KIA MOTORS AMERICA, INC.

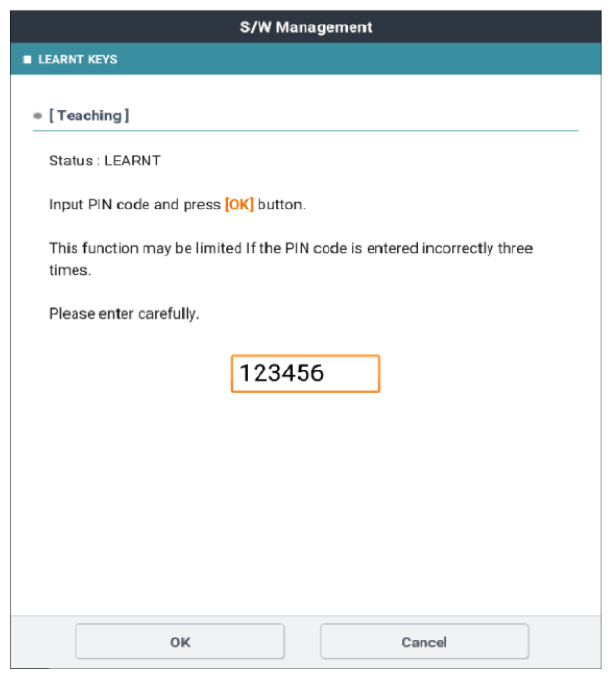

G13288459Courtesy of KIA MOTORS AMERICA, INC.
G13288460Courtesy of KIA MOTORS AMERICA, INC.

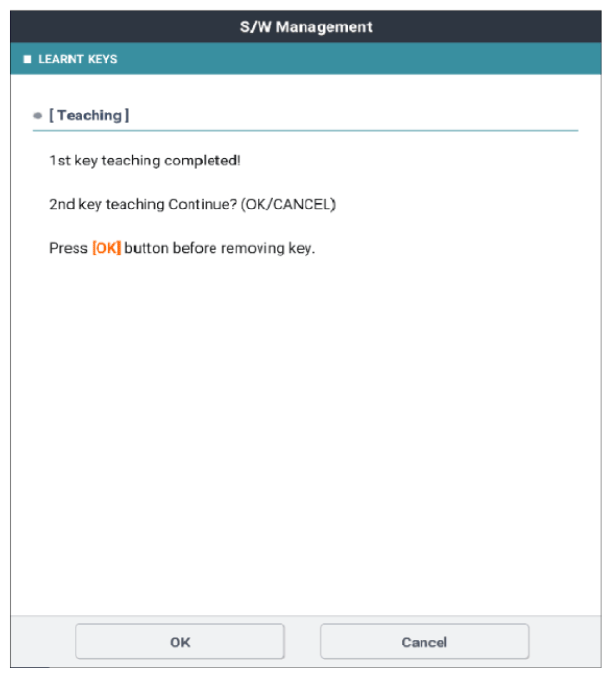

G13288461Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  2. Repair or replace as necessary and go to "Verification of Repair " procedure.

No Good

  1. Carefully re-do this troubleshooting guide steps.
  2. If no problems were found with the circuits or connectors, replace the IBU or ECM/PCM and go to "Verification of Repair " procedure.
