Monitor DTC Status

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".

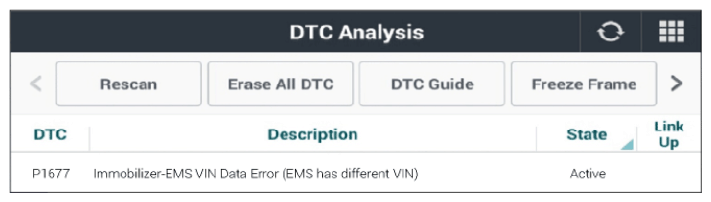

  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.
 Fig. 1
G13288433Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

  1. Go to "Monitor KDS Data " procedure.

History/Pending Fault

  1. Go to "Verification of Repair " procedure.
