Repair Procedures: Removal
NOTE:
When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Disconnect the negative battery terminal.

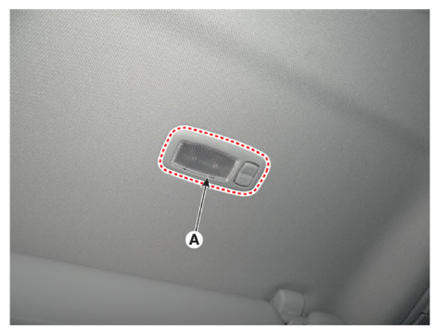

- Remove the vanity lamp (A) using a flat-tip screwdriver or remover.
 Courtesy of KIA MOTORS AMERICA, INC.
|

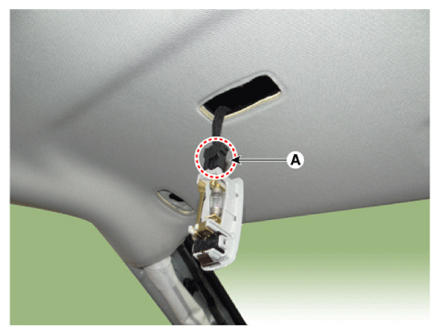

- Disconnect the connector (A) from the vanity lamp.
 Courtesy of KIA MOTORS AMERICA, INC.
|
