Front Turn Signal Lamp Bulb

  1. Disconnect the negative battery terminal.

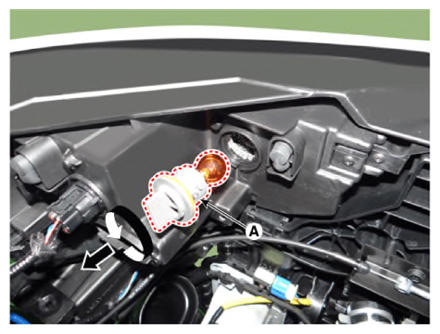

  2. Remove the socket (A) by rotating in the counterclockwise.
    G13282603Courtesy of KIA MOTORS AMERICA, INC.

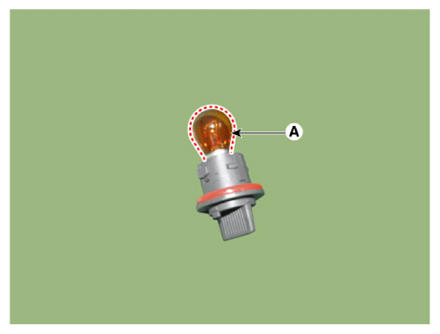

  3. Replace the bulb (A) from the socket.
    G13282604Courtesy of KIA MOTORS AMERICA, INC.
