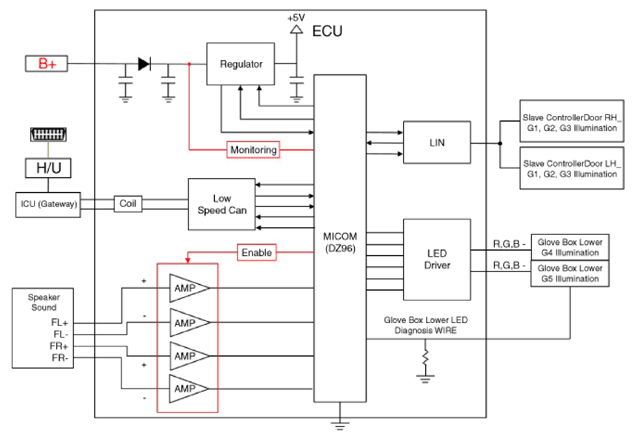

Home >> Kia >> 2020 >> Soul GT Line Turbo >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting System >> Sound Mood Lamp Unit >> Schematic Diagrams >> Circuit Diagram
