Repair Procedures: Removal

  1. Remove the cluster assembly.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

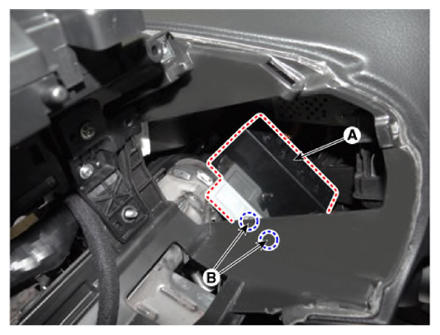

  2. Remove the sound mood lamp unit (A) after loosening the mounting nuts (B).
    G13282693Courtesy of KIA MOTORS AMERICA, INC.

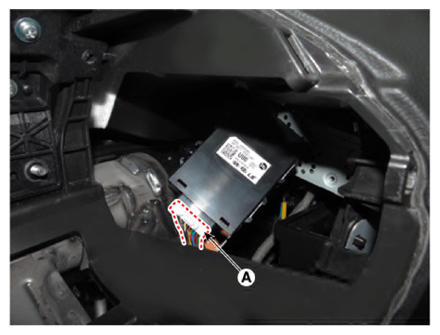

  3. Disconnect the connector (A) from the sound mood lamp unit.
    G13282694Courtesy of KIA MOTORS AMERICA, INC.
