Vehicle fender side

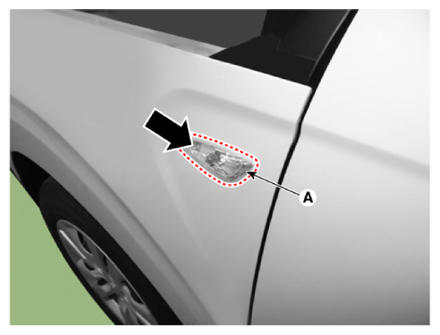

  1. Remove the side repeater lamp (A) by pressing the hook.
    G13282681Courtesy of KIA MOTORS AMERICA, INC.

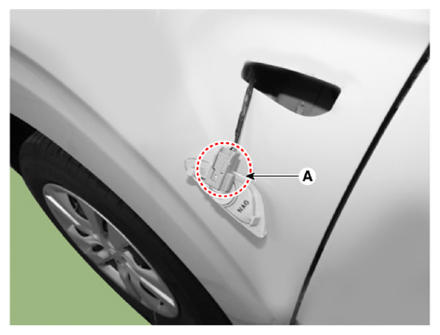

  2. Disconnect the side repeater lamp connector (A).
    G13282682Courtesy of KIA MOTORS AMERICA, INC.
