Outside mirror side

  1. Disconnect the negative battery terminal.

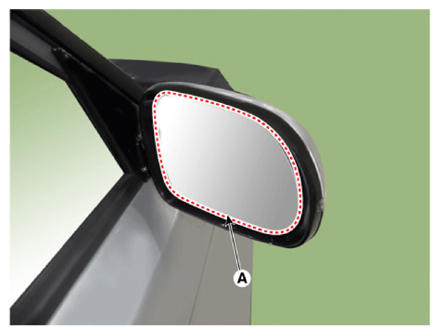

  2. Remove the mirror (A).
    G13282672Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • Be careful not to damage mirror and mirror housing during removing process.

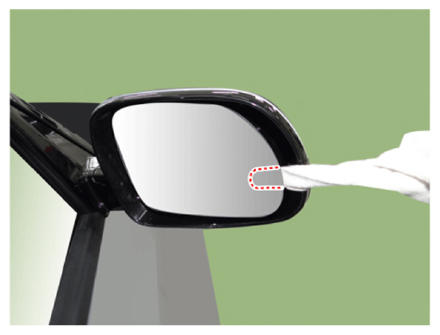

    • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
      G13282673Courtesy of KIA MOTORS AMERICA, INC.

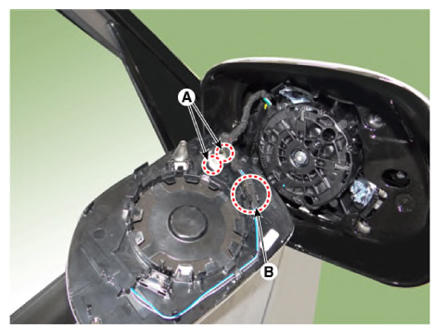

  3. Disconnect the heater connectors (A) and BCW connector (B).
    G13282674Courtesy of KIA MOTORS AMERICA, INC.

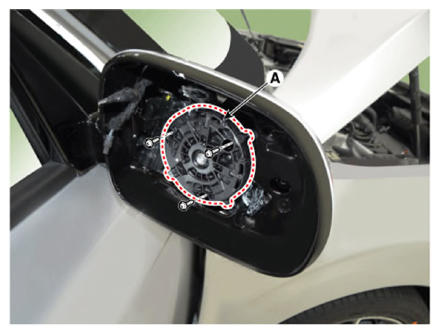

  4. Remove the mirror actuator (A) after loosening the mounting screws.
    G13282675Courtesy of KIA MOTORS AMERICA, INC.

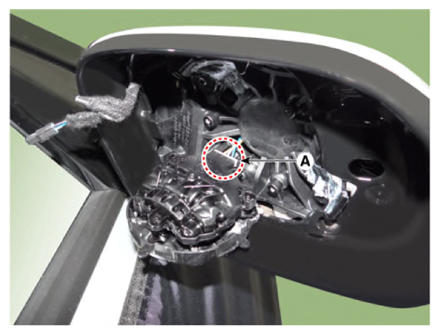

  5. Disconnect the connector (A) from the mirror actuator.
    G13282676Courtesy of KIA MOTORS AMERICA, INC.

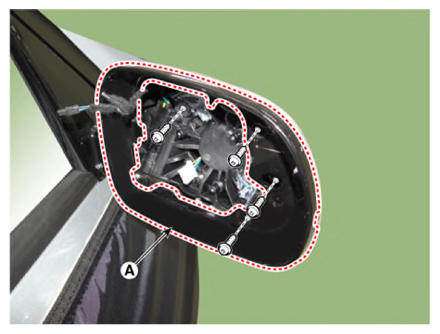

  6. Remove the housing cover (A) after loosening the mounting screws.
    G13282677Courtesy of KIA MOTORS AMERICA, INC.

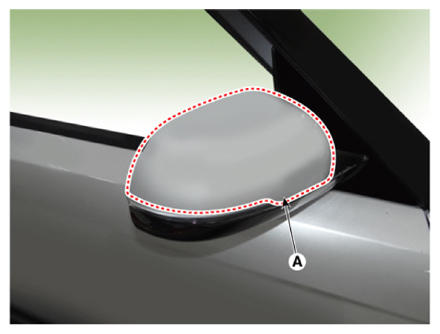

  7. Remove the outside mirror scalp (A).
    G13282678Courtesy of KIA MOTORS AMERICA, INC.

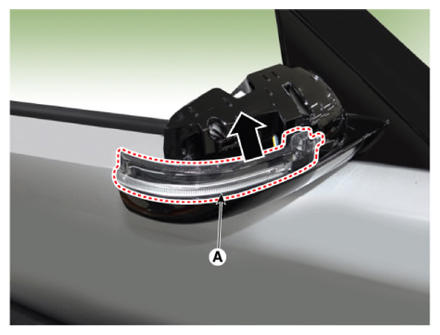

  8. Remove the side repeater lamp (A).
    G13282679Courtesy of KIA MOTORS AMERICA, INC.

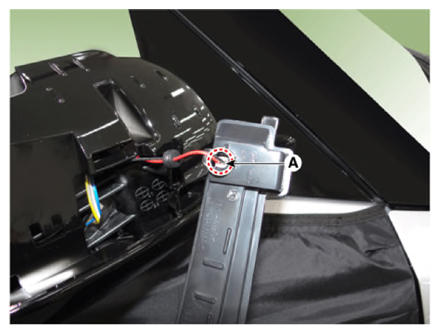

  9. Disconnect the connector (A) from the side repeater lamp.
    G13282680Courtesy of KIA MOTORS AMERICA, INC.
