Repair Procedures: Removal

NOTE: When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  1. Disconnect the negative battery terminal.

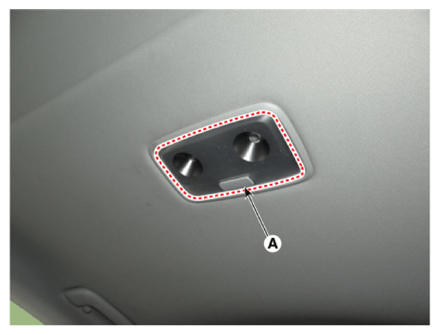

  2. Remove the room lamp lens (A) by using a screwdriver or remover.
    G13282665Courtesy of KIA MOTORS AMERICA, INC.

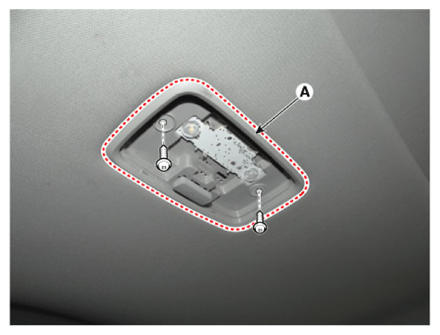

  3. Remove the room lamp (A) after loosening the screws.
    G13282666Courtesy of KIA MOTORS AMERICA, INC.

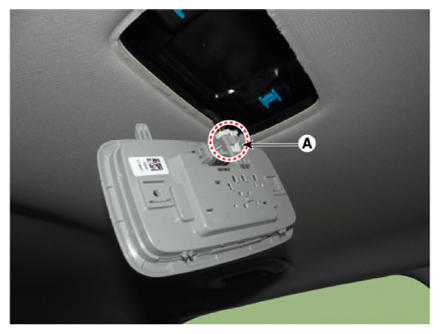

  4. Disconnect the room lamp connector (A).
    G13282667Courtesy of KIA MOTORS AMERICA, INC.

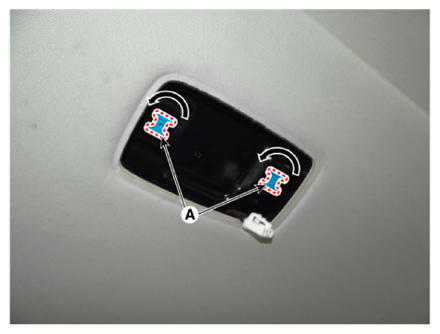

  5. Remove the room lamp mounting clips (A).
    G13282668Courtesy of KIA MOTORS AMERICA, INC.
