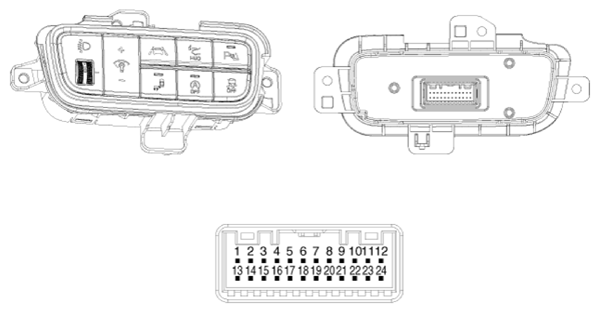

Connector And Terminal Function
| Pin | Function | Pin | Function |
|---|---|---|---|
| 1 | IG1 | 13 | Illumination (+) |
| 2 | - | 14 | - |
| 3 | - | 15 | ESC off signal |
| 4 | ISG off signal | 16 | ISG off indicator |
| 5 | HUD signal | 17 | LKA signal |
| 6 | BCW signal | 18 | - |
| 7 | BCW indicator | 19 | PDW signal |
| 8 | - | 20 | PDW indicator |
| 9 | Rheostat up signal | 21 | - |
| 10 | Rheostat down signal | 22 | - |
| 11 | - | 23 | Detent |
| 12 | Illumination (-) | 24 | Ground |
