Tail Lamp Bulb: [Outside]

  1. Disconnect the negative battery terminal.
  2. Remove the outside rear combination lamp.

    (Refer to Lighting System - "REAR COMBINATION LAMP ")

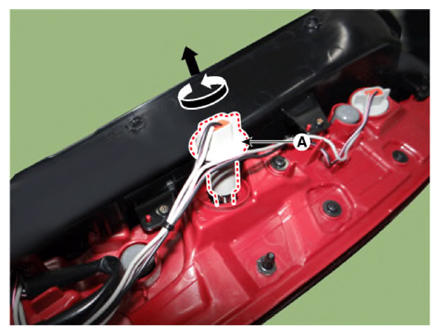

  3. Remove the socket (A) by rotating in the counterclockwise.
    G13282647Courtesy of KIA MOTORS AMERICA, INC.

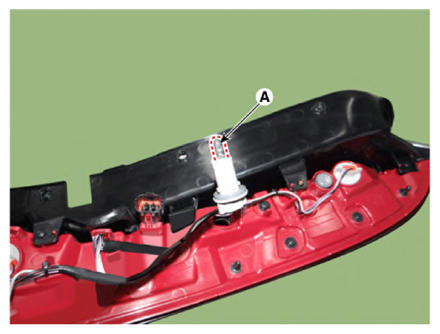

  4. Replace the tail lamp bulb (A).
    G13282648Courtesy of KIA MOTORS AMERICA, INC.
