Tail & Stop Lamp Bulb

  1. Disconnect the negative battery terminal.
  2. Remove the outside rear combination lamp.

    (Refer to Lighting System - "REAR COMBINATION LAMP ")

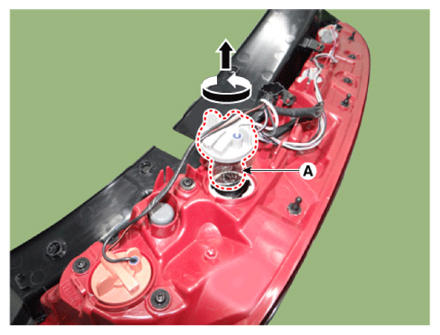

  3. Remove the socket (A) by rotating in the counterclockwise.
    G13282651Courtesy of KIA MOTORS AMERICA, INC.

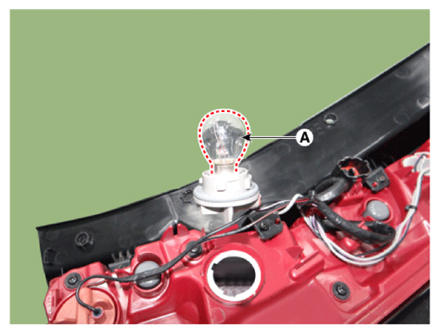

  4. Replace the tail & stop lamp bulb (A).
    G13282652Courtesy of KIA MOTORS AMERICA, INC.
