Rear Turn Signal Lamp Bulb

  1. Disconnect the negative battery terminal.
  2. Remove the outside rear combination lamp.

    (Refer to Lighting System - "REAR COMBINATION LAMP ")

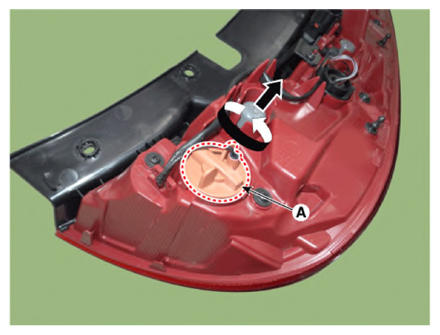

  3. Remove the socket (A) by rotating in the counterclockwise.
    G13282653Courtesy of KIA MOTORS AMERICA, INC.

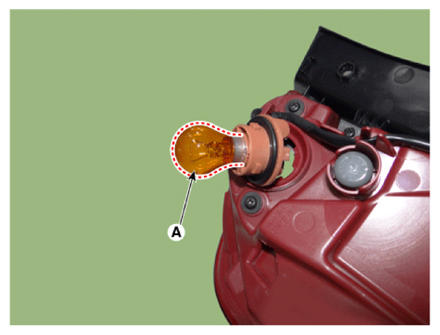

  4. Replace the bulb (A) from the socket.
    G13282654Courtesy of KIA MOTORS AMERICA, INC.
