Back Up Lamp Bulb

  1. Disconnect the negative battery terminal.

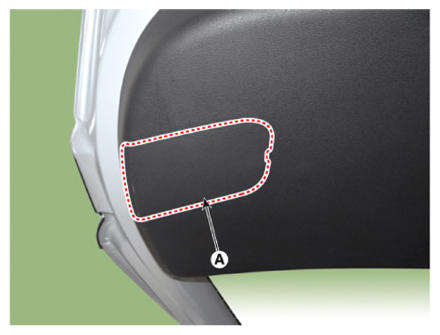

  2. Remove the rear combination lamp cover (A) using a screwdriver or remover.
    G13282655Courtesy of KIA MOTORS AMERICA, INC.

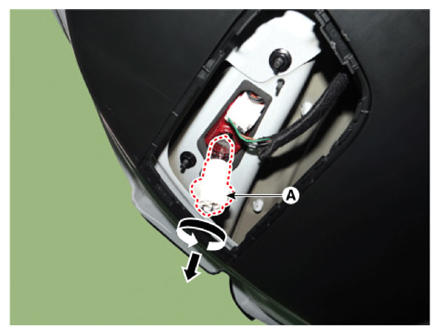

  3. Remove the socket (A) by rotating in the counterclockwise.
    G13282656Courtesy of KIA MOTORS AMERICA, INC.

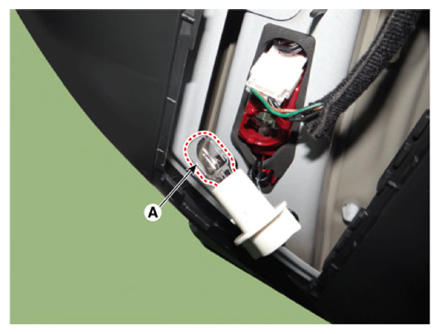

  4. Replace the bulb (A) from the socket.
    G13282657Courtesy of KIA MOTORS AMERICA, INC.
