Repair Procedures: Removal: [Inside]

  1. Disconnect the negative battery terminal.

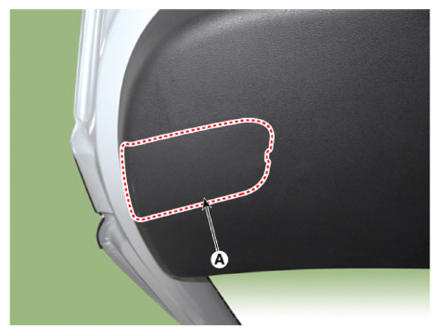

  2. Remove the rear combination lamp cover (A) using a screwdriver or remover.
    G13282644Courtesy of KIA MOTORS AMERICA, INC.

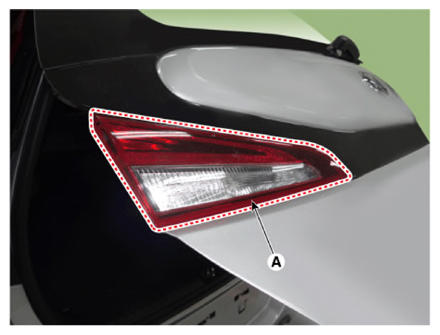

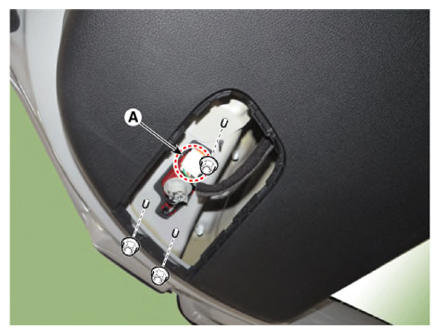

  3. Disconnect the connector (A) and then remove the rear combination lamp (B) after loosening the nuts.
    G13282645Courtesy of KIA MOTORS AMERICA, INC.
    G13282646Courtesy of KIA MOTORS AMERICA, INC.
