Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

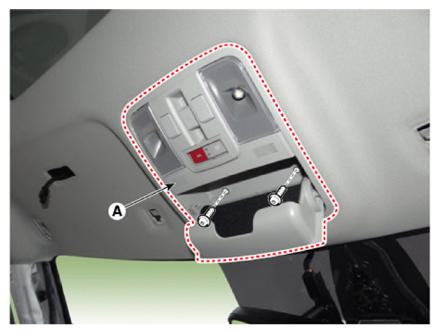

  2. Remove the overhead console lamp (A) after loosening the screws.
    G13282631Courtesy of KIA MOTORS AMERICA, INC.

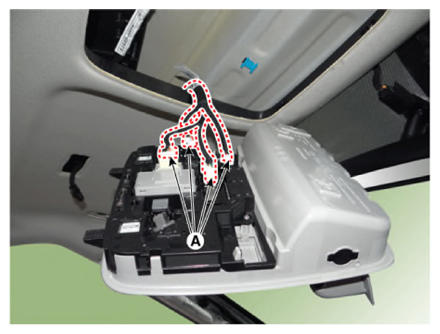

  3. Disconnect the connectors (A) from the overhead console lamp.
    G13282632Courtesy of KIA MOTORS AMERICA, INC.

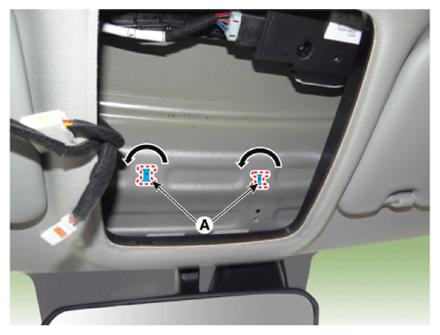

  4. Remove the room lamp mounting clips (A).
    G13282633Courtesy of KIA MOTORS AMERICA, INC.
