Repair Procedures: Inspection

  1. Remove the overhead console lamp.

    (Refer to Lighting System - "OVERHEAD CONSOLE LAMP ")

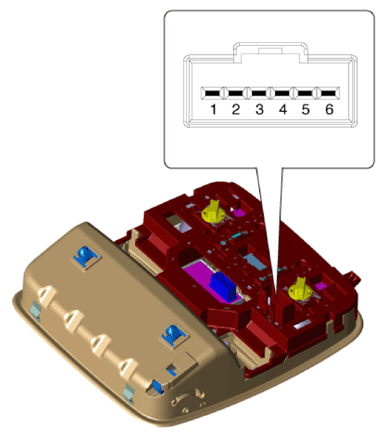

  2. Check for continuity between terminals.
    G13282629Courtesy of KIA MOTORS AMERICA, INC.
    Pin Function
    1 Battery (+)
    2 Door (-)
    3 Room signal
    4 -
    5 -
    6 Ground
    G13282630Courtesy of KIA MOTORS AMERICA, INC.
