Bulb replacement

  1. Disconnect the negative battery terminal.

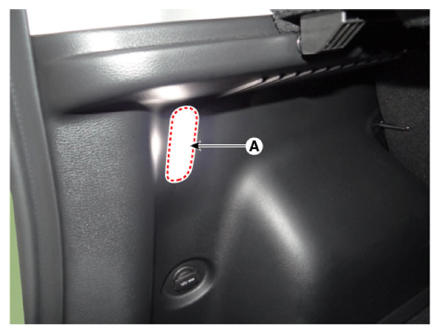

  2. Remove the luggage room lamp (A) by using a flat-tip screwdriver or remover.
    G13282622Courtesy of KIA MOTORS AMERICA, INC.

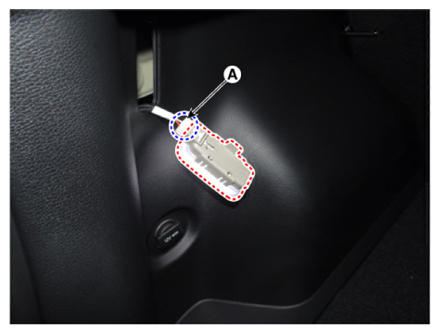

  3. Disconnect the luggage room lamp connector (A).
    G13282623Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the lamp lens (A).
    G13282624Courtesy of KIA MOTORS AMERICA, INC.

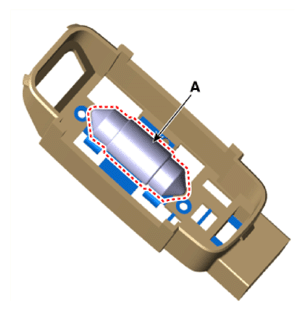

  5. Replace the luggage room lamp bulb (A).
    G13282625Courtesy of KIA MOTORS AMERICA, INC.
