Repair Procedures: Removal

  1. Disconnect the negative battery terminal.
  2. Remove the luggage room lamp (A) by using a flat-tip screwdriver or remover.
    G13282620Courtesy of KIA MOTORS AMERICA, INC.

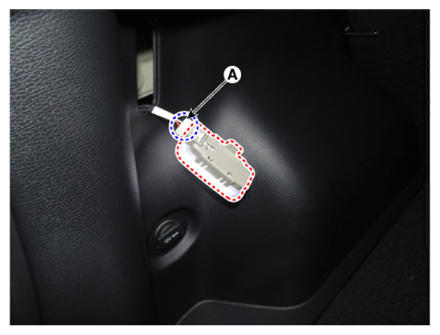

  3. Disconnect the luggage room lamp connector (A).
    G13282621Courtesy of KIA MOTORS AMERICA, INC.
