Repair Procedures: Replacement: [Bulb]

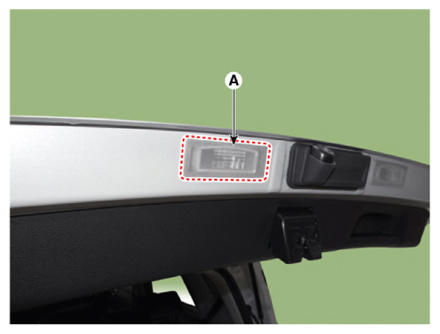

  1. Remove the license lamp (A).
    G13282617Courtesy of KIA MOTORS AMERICA, INC.

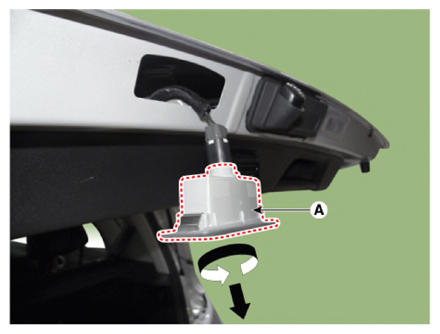

  2. Remove the lens & housing assembly (A) by turning it counterclockwise.
    G13282618Courtesy of KIA MOTORS AMERICA, INC.

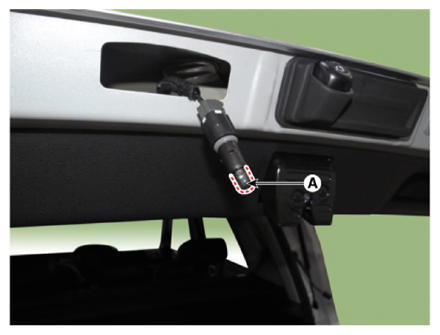

  3. Replace the license lamp bulb (A).
    G13282619Courtesy of KIA MOTORS AMERICA, INC.
