Repair Procedures: Replacement: Bulb

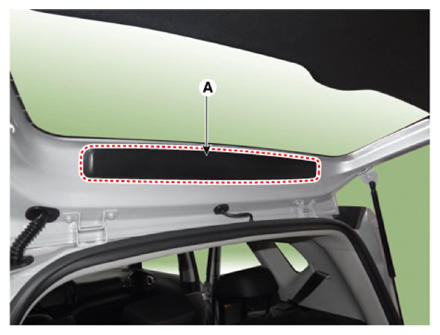

  1. Remove the high mounted stop lamp cover (A).
    G13282612Courtesy of KIA MOTORS AMERICA, INC.

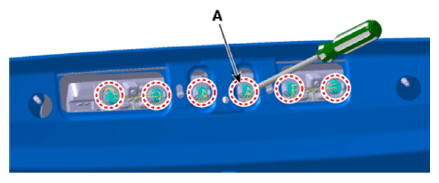

  2. Pull out the bulb-socket (A) from the high mounted stop lamp assembly using the driver.
    G13282613Courtesy of KIA MOTORS AMERICA, INC.

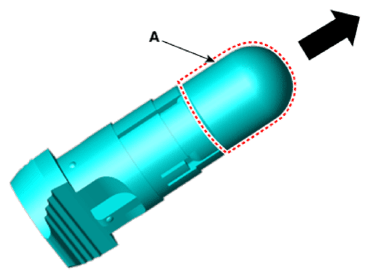

  3. Replace the bulb by pulling it out from the socket.
    G13282614Courtesy of KIA MOTORS AMERICA, INC.
