Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

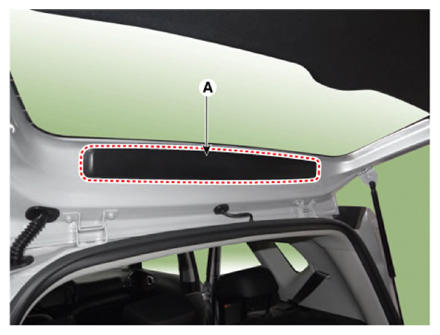

  2. Remove the high mounted stop lamp cover (A).
    G13282609Courtesy of KIA MOTORS AMERICA, INC.

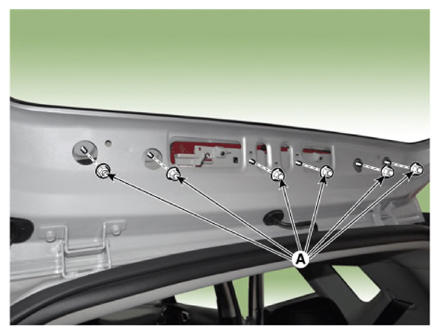

  3. Loosen the mounting nuts (A) of the high mounted stop lamp.
    G13282610Courtesy of KIA MOTORS AMERICA, INC.

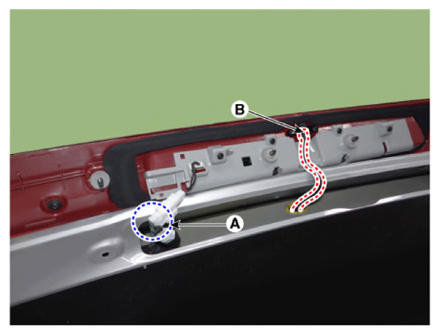

  4. Disconnect the lamp connector (A) and washer nozzle (B).
    G13282611Courtesy of KIA MOTORS AMERICA, INC.
