Repair Procedures: Replacement: Bulb

  1. Remove the headlamp assembly.

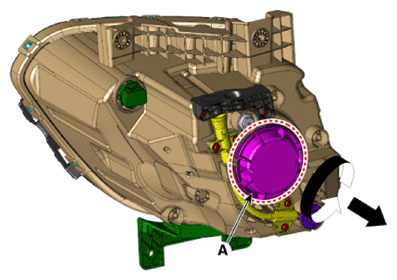

  2. Remove the dust caps (A) after turning in the counterclockwise direction.
    G13282589Courtesy of KIA MOTORS AMERICA, INC.

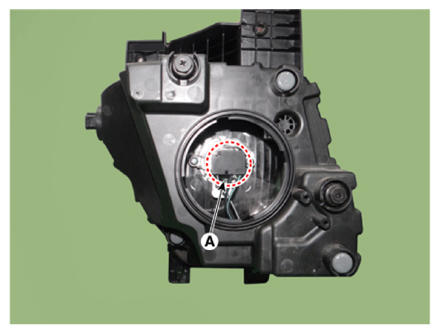

  3. Disconnect the high/low beam bulb connector (A).
    G13282590Courtesy of KIA MOTORS AMERICA, INC.

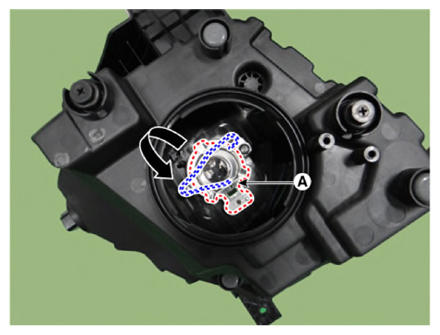

  4. Replace the bulb socket (A) by pushing the fixing clip.
    G13282591Courtesy of KIA MOTORS AMERICA, INC.
