[Halogen/Bi-Function Headlamp]

  1. Disconnect the negative battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

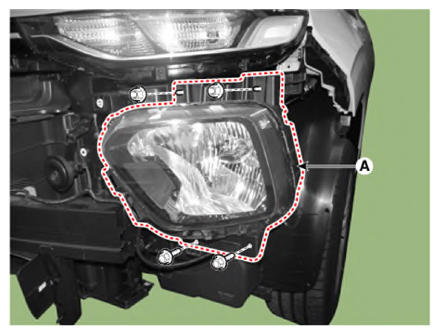

  3. Remove the front headlamp assembly (A) after loosening the mounting bolts and nuts.
    G13282587Courtesy of KIA MOTORS AMERICA, INC.

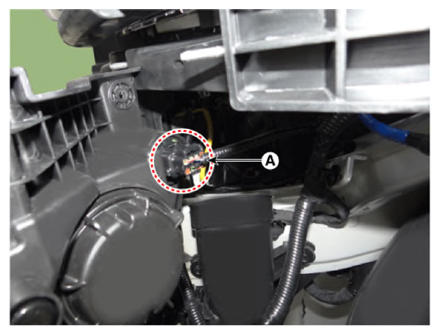

  4. Disconnect the connector (A) from the headlamp assembly.
    G13282588Courtesy of KIA MOTORS AMERICA, INC.
