Description & Operation: Description: Bi-Function

  1. Definition

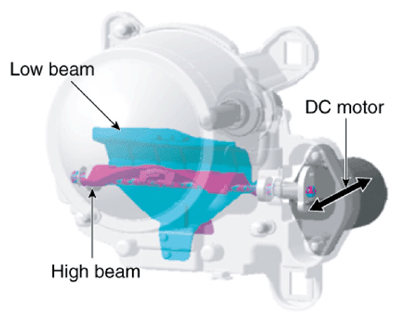

    • A headlamp with integrated functions of high and low beam
    • The light is controlled by rotating the shield inserted to the lens. (A solenoid is adopted.)
    G13282574Courtesy of KIA MOTORS AMERICA, INC.
    G13282575Courtesy of KIA MOTORS AMERICA, INC.
  2. Structure and mechanism

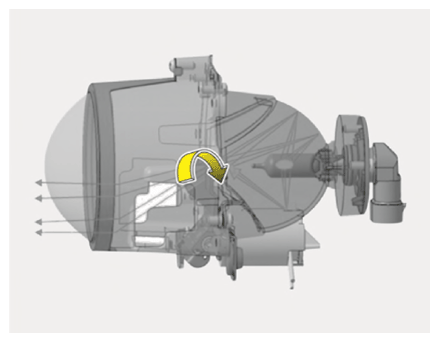

    • When working as a low beam

      : The light illuminates to the restricted area of low beam by blocking the light with the stopped shield.

      G13282576Courtesy of KIA MOTORS AMERICA, INC.

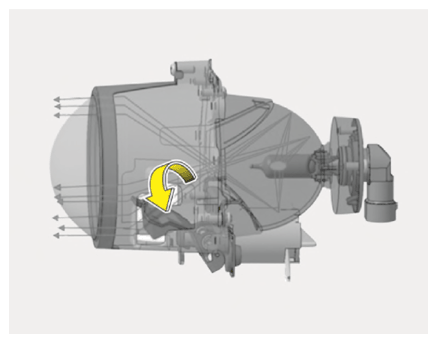

    • When working as a high beam

      : The light is not blocked by the open shield and the light illuminates to the area of high beam.

      G13282577Courtesy of KIA MOTORS AMERICA, INC.
