Repair Procedures: Inspection

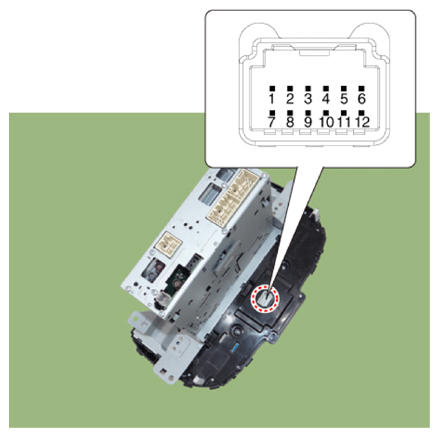

  1. Push the switch, then check for continuity between terminals.
    G13282571Courtesy of KIA MOTORS AMERICA, INC.
Pin Function
1 Ground
2 -
3 Hazard switch
4 -
5 Battery (+)
6 -
7 -
8 -
9 -
10 -
11 -
12 Hazard indicator
G13282572Courtesy of KIA MOTORS AMERICA, INC.
