Repair Procedures: Removal

  1. Disconnect the negative battery terminal.

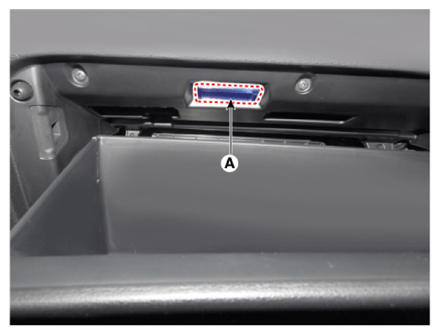

  2. Remove the glove box lamp (A) using a flat-tip screwdriver or remover.
    G13282687Courtesy of KIA MOTORS AMERICA, INC.

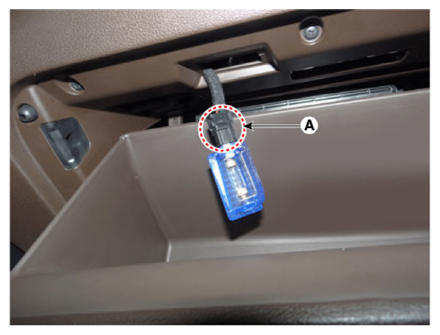

  3. Disconnect the connector (A) from the glove box lamp.
    G13282688Courtesy of KIA MOTORS AMERICA, INC.
