Monitor DTC Status
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
|
|

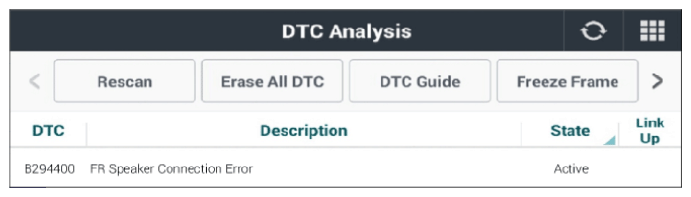

Fig.1 |
Active Fault
- Go to "Wiring Inspection " procedure.
History/Pending Fault
- Fault is intermittent caused by poor contact in the sensor's and/or AVN's connector or was repaired and AVN memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.
- Repair as necessary and then go to "Verification of Repair " procedure.
