Circuit Inspection

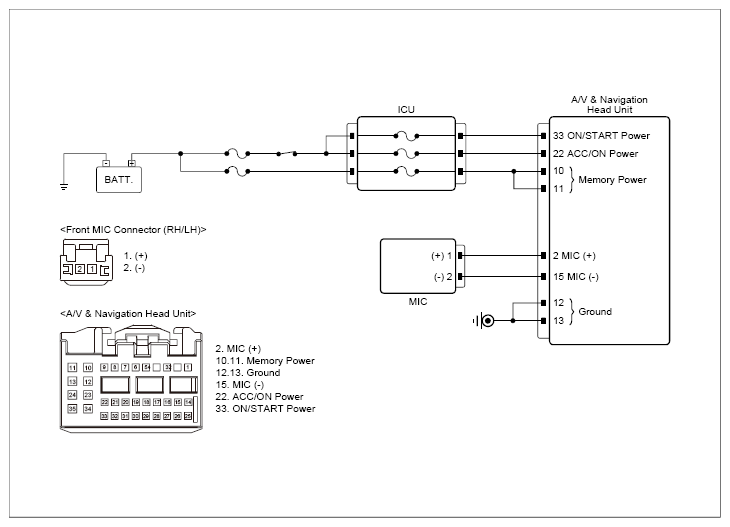

G13285323

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	Front MIC connector	1 (+)	A/V & navigation head unit connector	2 (+)	Approx. below 1Ω
	Front MIC connector	2(-)	A/V & navigation head unit connector	15(-)	Approx. below 1Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the A/V & navigation head unit and go to "Verification of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the front MIC and go to "Verification of Repair " procedure.
