Circuit Diagram

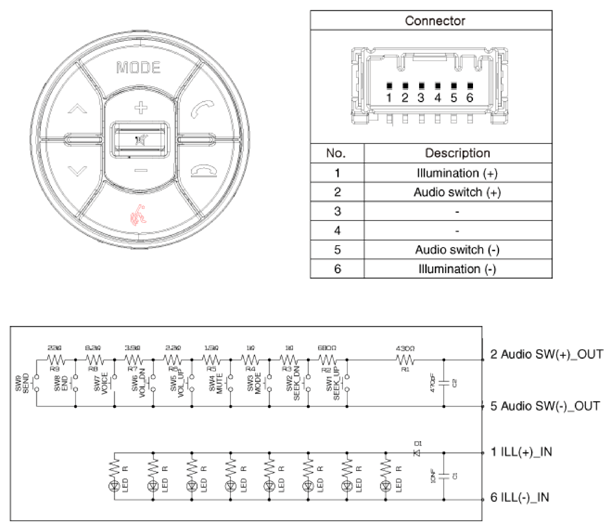

[Audio + Bluetooth + Voice]

G13282363

Courtesy of KIA MOTORS AMERICA, INC.

[Trip + SCC+SLD]
