Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

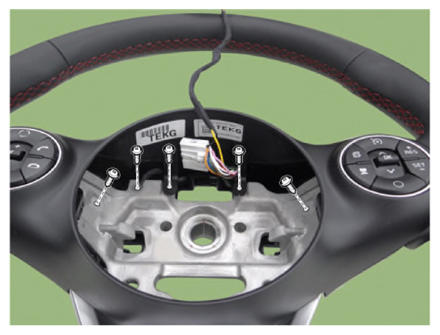

  3. Loosen the mounting screws.
    G13282364Courtesy of KIA MOTORS AMERICA, INC.

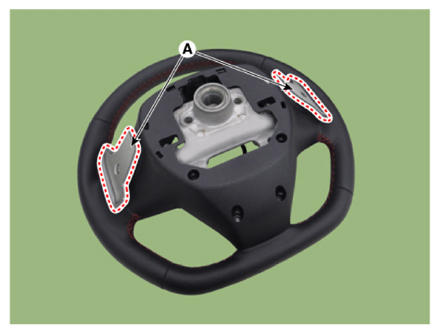

  4. Remove the paddle shifters (A).
    G13282365Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the paddle shifter connectors (A).
    G13282366Courtesy of KIA MOTORS AMERICA, INC.

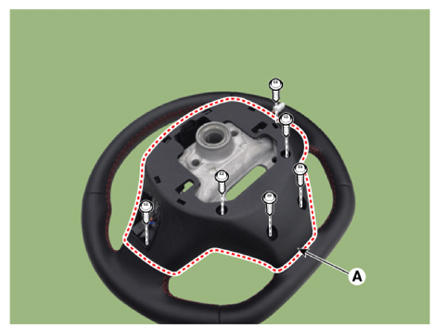

  6. Remove the steering wheel back cover (A) by loosening the mounting screws.
    G13282367Courtesy of KIA MOTORS AMERICA, INC.

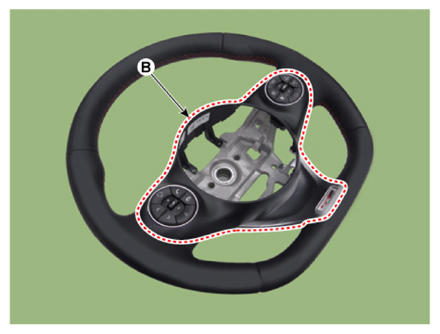

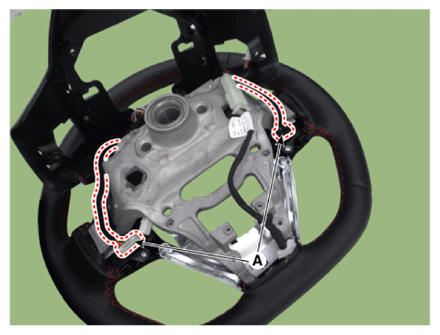

  7. Disconnect the connectors (A) and then remove the steering wheel bezel assembly (B).
    G13282368Courtesy of KIA MOTORS AMERICA, INC.
    G13282369Courtesy of KIA MOTORS AMERICA, INC.

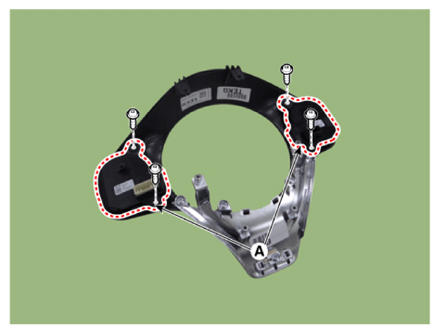

  8. Remove the steering wheel remote controllers (A) from bezel after loosening the screws.
G13282370Courtesy of KIA MOTORS AMERICA, INC.
