Tweeter Speaker

  1. Disconnect the negative (-) battery terminal.

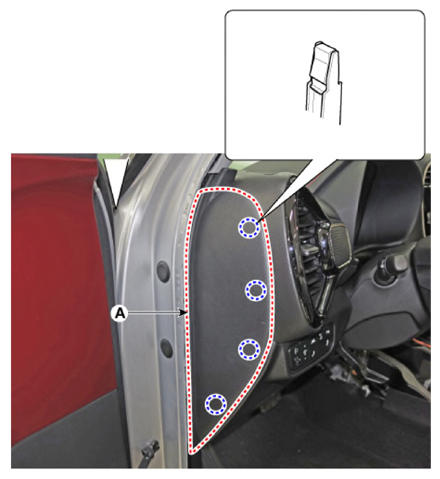

  2. Remove the crash pad side cover (A).
    G13282337Courtesy of KIA MOTORS AMERICA, INC.

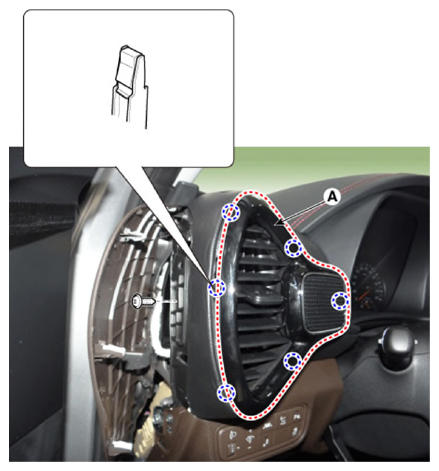

  3. Remove the side air ventilation duct assembly (A) after loosening the screw.
    G13282338Courtesy of KIA MOTORS AMERICA, INC.

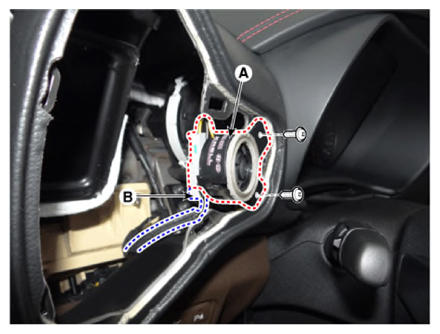

  4. Remove the tweeter speaker (A) by loosening the screws after disconnecting the connector (B).
G13282339Courtesy of KIA MOTORS AMERICA, INC.
